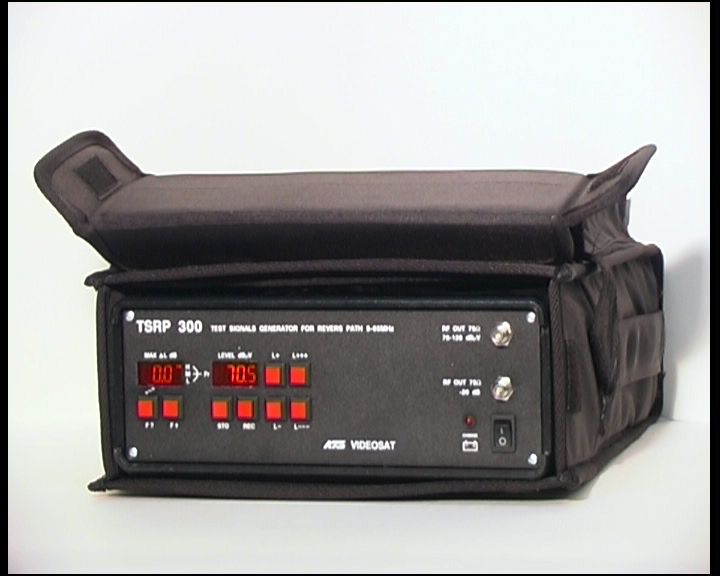

Purpose:
To generate simultaneously three narrow band test signals in range of 5 MHz to 65 MHz with levels from 70 to 120 dBµV.

Characteristic features:
● Precise tuning of both frecuencies and levels of the test signals.
● Opportunity to store up to 10 output states of the generator
● Microprocessor control with digital LED
● Portable with rechargeable built-in battery

PARAMETERS

Output signals level	[dBµV]	70 ÷ 120
Step of regulation each of output signals level	[dB]	0.5
Maximum set ratio between levels of the output signals	[dB]	9.5
Frequency range of generated signals	[MHz]	5 ÷ 65
Steps of regulation each of output signals frequency (gross/fine)	[MHz]	1 / 0.05
Maximum flatness of frequency response within temperature range from 0°C to 50°C	[dB]	±0.5
Attenuation at second output	[dB]	20
Output states stored		10
Output resistance	[Ω]	75
Connectors type		F 3/8"
Mains	[V/Hz]	220 +5%, ‑10% / 50
Power consumption	[VA]	12
Battery supply, rechargeable	[V/Ah]	12 / 2
Battery capacity until the next recnarge at 30% ON/OFF	[h]	8
Overall dimension (L x W x H)	[mm]	340 x 280 x 100
Маса	[kg]	7.3
